Founded in January 2024, Magic Atom focuses on the R&D and application of general robots and embodied intelligence technologies.
Its products include general-purpose humanoid robots and bionic quadruped robots, covering industrial, commercial and household scenarios.
Most of the core members of the R&D team graduated from Tsinghua University, Shanghai Jiao Tong University, Zhejiang University, Beihang University, New York University and other well-known universities at home and abroad, and have been engaged in core technology research and development in the fields of robotics and artificial intelligence algorithms for many years, of which more than 80% are R&D personnel, and more than 50% have a master's degree or above.
The first general-purpose humanoid robot in China to realize multi-machine collaboration
Multi-machine collaborative operation enables flexible production and efficiently responds to complex industrial scenarios
All-scene environment awareness, fearless of complex challenges
超声波传感器+激光雷达+鱼眼相机*3+头&腰部RGBD相机，精准捕捉环境细节
Self-developed navigation algorithm, intelligently adapting to various complex terrains and scenes
Excellent machine performance, defining a new benchmark in the industry
The design of 42 degrees of freedom allows you to carry up to 20 kg with both arms and up to 40 kg with your whole body
The high-performance drive system ensures the stability and efficiency of continuous operation
Dynamic walking ability that coexists with elegance and stability
Industry-leading motion control network with self-learning to optimize walking posture
Strong dynamic anti-interference and anti-impact ability, smoothly traversing complex terrain
Precise operation ability, breaking through the boundary of fine operation
Based on 6D visual servo and whole-body imitation, the floating base design is learned, and the action is executed accurately
Flexibly adapt to a variety of landing scenarios, from high-precision to complex operation requirements

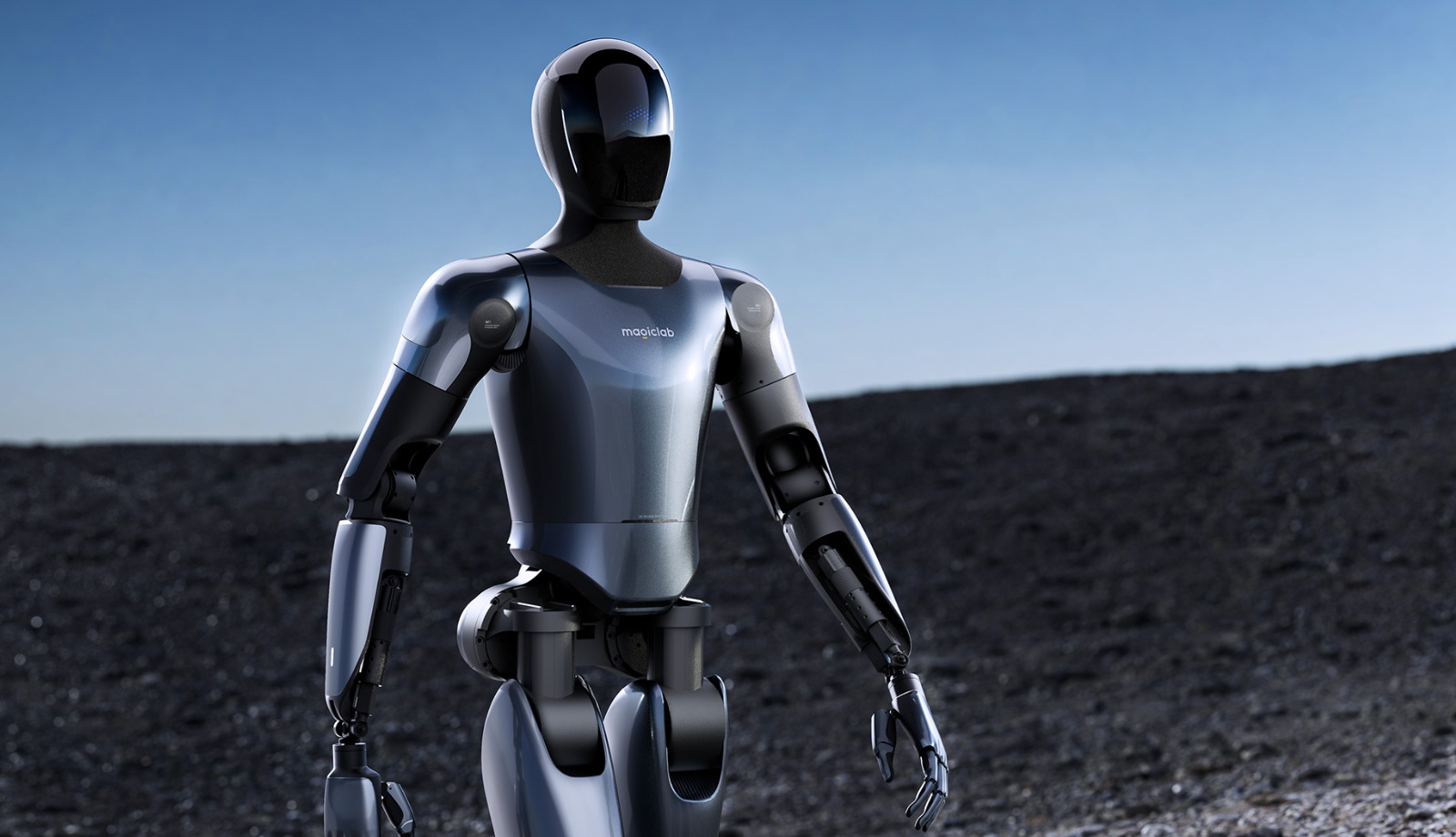

MagicBot-Gen1
Height, width and thickness (standing) 174 × 58 × 28cm
Arm span of 80cm in one arm (from the center of one joint of the shoulder to the fingertips)
Thigh: Calf length 51cm 45cm
The weight of the whole machine is 67.5kg
Material information The main structure is aluminum alloy, and the appearance of plastic parts is PC ABS
Reducer Planetary reducer/harmonic reducer
峰值扭矩密度>194N.m/kg
The maximum joint torque is 350N.m
运动速度>2m/s
High computing power module: 8 cores, 8 cores, CPU 100TOPS, AI computing power
Battery capacity: 25Ah (1.35Kwh)
Charging time: 3h
Battery life - 4-5h continuous exercise
Total free joints 42 (active degrees of freedom)
Neck Degrees of Freedom 2 (Yaw Axis x1 Pitch Axis x1)
Single Arm Degrees of Freedom7 (Shoulder x3, Elbow x1, Wrist x3)
11 degrees of freedom in one hand (6 active degrees of freedom, 5 passive degrees of freedom)
Waist Degrees of Freedom 2 (Yaw Axis x1 Roll Axis x1)
Single-leg degrees of freedom 6 (hip×3 knee×1 ankle ×2)
Golden Globe Award "2024 Technology of the Year"
Robot Lecture Hall 2024 "Humanoid Robot Technology Innovation Award"
36Kr 2024 embodied intelligence innovation application case
2024 Yanzhi Humanoid Robot Annual Conference Annual Meeting Annual Most Valuable Investment Award
China Telecom's 2024 Outstanding Innovation Award
On December 6, 2024, at the 2nd Wuxi International Artificial Intelligence Innovation and Application Conference, the humanoid robot MagicBot and quadruped robot MagicDog made a surprise appearance by Magic Atom. As the only designated reception robot at the conference site, MagicBot and MagicDog brought a high-tech and futuristic opening performance, and interacted with the guests and demonstrated their capabilities in the conference exhibition area.
Founded in January 2024, Magic Atom is a robotics startup incubated by the Dreame Technology ecosystem, focusing on the R&D and application of robotics and artificial intelligence technologies. The robot products of Magic Atom Company include general-purpose humanoid robots, bionic quadruped robots, etc., relying on the systematic ability of Dreame Technology Ecological Construction, it has great advantages at the level of commercialization, and will cover multiple scenarios such as industry, family, and business in the future.
According to the on-site staff, Magic Atom has a comprehensive technical matrix and continuous R&D capabilities of the robot "brain, cerebellum and heart", based on AI's R&D empowerment in the fields of data training, perception and navigation, precision operation, etc., to accelerate the transformation from laboratory to commercial application, and finally land in more real-world scenarios. With the technical capabilities and application prospects of the humanoid robot MagicBot, Magic Atom has attracted wide attention from all parties in the market.
In the previous video officially released by Magic Atom, the humanoid robot MagicBot has been stationed in the factory production line for a number of job training. In the video, multiple MagicBot humanoid robots are performing product inspection, material handling, parts picking and place, scanning codes and warehousing, etc., and have achieved small-scale cooperation with each other. The anthropomorphic characteristics of MagicBot make it more adaptable to complex environments, especially suitable for 3C, home appliances and other factories that need to switch production lines frequently.
Also in the industrial scene, Magic Atom has also reached a cooperation with Foton Cummins, a giant in the power equipment industry, to jointly promote the transformation of production lines to automation and intelligence.
At the level of home scenarios, Magic Atom recently signed a contract with Tianyi Digital Life Company, a subsidiary of China Telecom, to become a robot ecological partner of China Telecom's "Beautiful Home Robot Ecological Co-construction Plan", and the two sides will deepen cooperation, accelerate the innovation and development and application of home service robot technology, and tap the potential of robot products in home service scenarios.
It is reported that Magic Atom will officially release a new generation of MagicBot humanoid robot products in the first quarter of 2025, which will simultaneously achieve small-scale mass production and quickly apply in industrial and commercial service scenarios.
Magic Atom completed an angel round of financing of 150 million yuan, and mass production and delivery will start in 2025
Recently, MagicLab, an embodied intelligent robot company, completed an angel round of financing of 150 million yuan, which was led by Chase Venture Capital and followed by Yipu Fund. Magic Atom said that after the completion of this round of financing, the company will expand talent recruitment, continue to increase the research and development of embodied intelligence core technologies, humanoid robots, and accelerate the pace of mass production, expand the landing and commercialization of industrial and commercial scenarios.
Focus on the self-development of the core technology of humanoid robots, and gradually start mass production and delivery in 2025
Founded in January 2024, Magic Atom focuses on the R&D and application of general-purpose robots and embodied intelligence technologies, and its products include general-purpose humanoid robots and bionic quadruped robots, covering multiple scenarios such as industry, commerce and home. The company has about 100 people, and most of the core members of the R&D team graduated from Tsinghua University, Shanghai Jiao Tong University, Zhejiang University, Beihang University, New York University and other well-known universities at home and abroad, and have been engaged in core technology research and development in the fields of robotics and artificial intelligence algorithms for many years, of which more than 80% are R&D personnel, and more than 50% have master's degree or above.
Wu Changzheng, head of Magic Atom's business, said: "Magic Atom has a comprehensive technical matrix and continuous research and development capabilities for robotic 'brains, cerebellums and limbs'. After this financing, Magic Atom will further strengthen the research and development of core algorithms, focusing on breakthroughs in key technologies such as motion control algorithms, perception algorithms, and embodied models; Improve the efficiency of the supply chain, build the production and manufacturing capacity of the humanoid robot body, and create stable, reliable and mature mass-produced humanoid robot products on the basis of cost control. ”
In the first quarter of 2025, Magic Atom will officially release a new generation of MagicBot humanoid robot products. The company expects to deliver hundreds of production versions of the MagicBot in 2025 and 1,000 units in 2026.
In addition to the humanoid robot body, Magic Atom also has the independent research and development and production capacity of upstream core components, and its self-developed core components such as joint modules, dexterous hands, reducers, drives, and main controls are highly matched with the body, effectively reducing production costs and providing conditions for large-scale mass production of the whole machine.
The era of large-scale application is coming, and Magic Atom is accelerating the implementation of industrial, commercial services and other scenarios
At present, with the active layout of well-known enterprises such as Tesla and Figure AI, humanoid robots have made rapid progress in landing applications, and their application prospects in the fields of manufacturing and business services have been widely recognized, and the industry expects that humanoid robots can be put into large-scale application as soon as possible.
Lei Ming, founding partner of Chase Venture Capital, said: "In the future, humanoid robots will become important intelligent terminals that assist or even replace manpower in many fields such as industry, commerce, and household, creating a huge blue ocean market of trillions of yuan, and the current humanoid robot industry is close to the breaking point. Magic Atom's robot product capabilities have been at the world's leading level, and at the same time, with the empowerment of rich application scenarios, it can realize the transformation from the laboratory to practical applications faster. In the future, we hope to join hands with Magic Atom to explore the infinite possibilities of humanoid robots in more application scenarios. ”
Humanoid robots have the characteristics of high degree of freedom and human-like operation, and have a higher degree of adaptability to complex environments, especially suitable for 3C, home appliances and other factories that need to switch production lines frequently, which can help the manufacturing industry improve the flexibility of production lines, reduce factory deployment costs, and flexibly respond to market changes.
On December 2, Magic Atom released a video showing the progress of its humanoid robot MagicBot stationed in the factory production line to carry out training operations. In the future, Magic Atom will continue to improve the robot's ability to perform complex tasks, in order to meet the requirements of "skilled workers" as soon as possible.
In addition, Magic Atom is also exploring the implementation in the field of business services. Magic Atom has deployed MagicBot humanoid robots and quadruped robots in some home appliance retail stores to conduct business service training such as welcoming guests and shopping guides.
At the beginning of December, Magic Atom also signed a contract with Tianyi Digital Life Company, a subsidiary of China Telecom, and became a robot ecological partner of China Telecom's "Beautiful Home Robot Ecological Co-construction Plan" to jointly explore the innovative development and application of home service robot technology.
The self-developed MagicNet multi-machine collaboration system improves the maturity of the B-end application of humanoid robots
Since its establishment, Magic Atom has always dug deep into product needs for real application scenarios, and in the factory operation video previously shown, multiple MagicBot humanoid robots are on the assembly line for product inspection, material handling, parts grabbing, code scanning operations and other operation training, and realize multi-machine collaboration in some scenarios.
Wu Changzheng said that while continuously improving the intelligence level of humanoid robot ontology, Magic Atom also pays attention to building multi-robot collaboration capabilities.
Magic Atom is building the MagicNet multi-machine collaboration system, in order to realize the rapid deployment and rapid management of multiple humanoid robots, and improve the efficiency of collaboration. Taking the factory scene as an example, MagicNet can collect and organize the environmental perception data of multiple humanoid robots, realize the sharing of multi-scene maps, and carry out task planning and scheduling with the best production efficiency. MagicNet will also support customized development for specific stations in the factory.
MagicNet will also consider the fault-tolerant mechanism of multi-machine collaboration, and if the humanoid robot fails, there will also be corresponding rules to command other robots to take over or reassign tasks. MagicNet will also support wireless access to the communication between the factory's MES system and automation equipment, and realize the functional collaboration and data sharing between the humanoid robot and the factory's existing machinery and equipment and MES system.
At present, Magic Atom has opened up the whole industrial chain of humanoid robots such as core software and hardware self-development, supply chain management and manufacturing, and scene landing applications, and humanoid robot products are about to achieve large-scale mass production.
